工业计算机
Industrial PC
CIP-S17R-RPL1

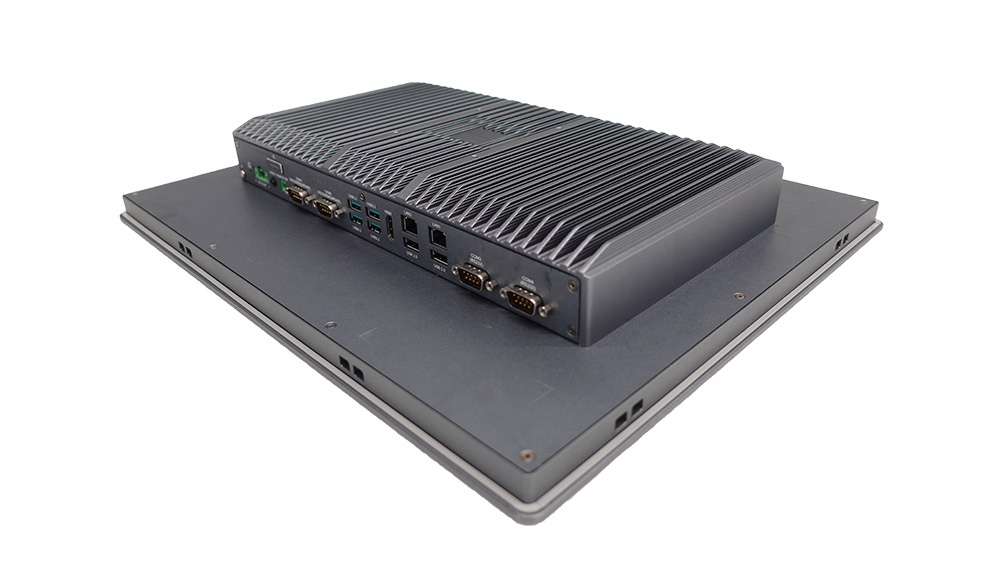

· CIP-S17R-RPL1是一款全平面工业等级平板电脑
· 采用17英寸TFT LCD搭配五线式电阻触摸屏/十点投射式电容触摸屏
· 搭载Intel® Raptor Lake 系列平台
· 支持12~24V宽压输入，具有高稳定性的Intel®双千兆网口

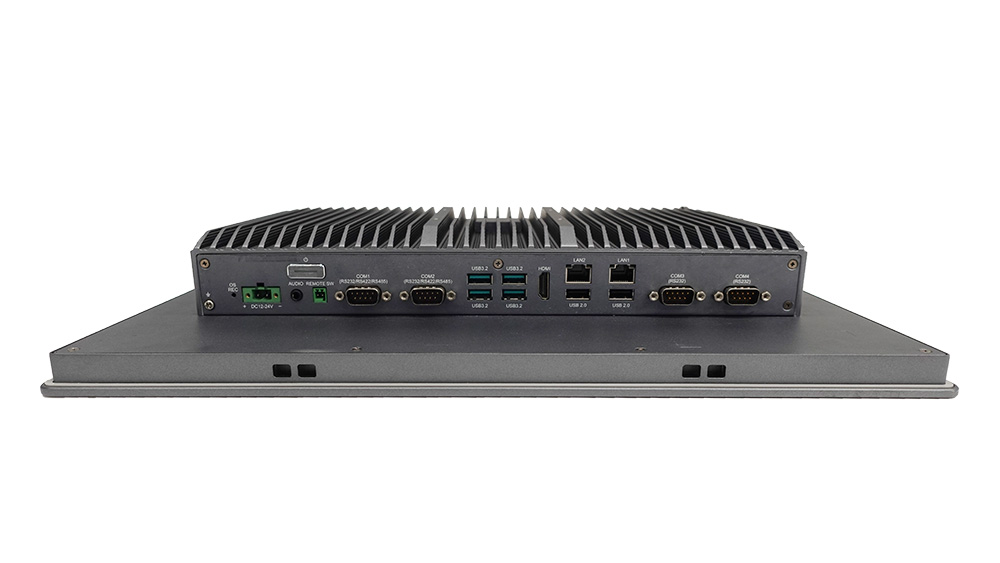

· 6x COM, 6x USB, HDMI
· 前面板支持IP65防护等级，可更好适应不同的使用现场要求
选择产品资料
| 系统 System | |
| Processor |
Intel® Core™ 13th i3/i5/i7 Raptor Lake i3-1315U/ i5-1335U/ i7-1355U |
| Memory |
1x DDR4 SO-DIMM 3200MHz, Up to 32 GB |
| BIOS | AMI 128Mbit SPI Flash |
| OS | Windows 10 64bit; Linux |
|
Watchdog Timer |
System reset，programmable 255 levels timer interval, from 1~255 sec/min |
| 外部I/O Enternal I/O | |
|
Ethernet |
1x Intel® I219-V GbE(10/100/1000 Mbps), |
| Display | 1x HDMI: max resolution up to 3840 x 2160 |
| Audio | 1x Audio（Line-out & Mic-in 2 in 1） |
| COM | 2x COM (RS232/422/485 auto-flow) 2x COM ( RS232 ) |
| USB |
2x USB 3.0(Gen1), 2x USB 3.0(Gen2) |
| Remote SW | 1x Remote ON-OFF |
| Power input |
1x Phinex 2Pin |
| Power botton | 1x Power button w/ LED |
| OS Recovery | 1x OS Recovery button |
| Removable | 1x 2.5" Drive Bay for SATA HDD/SSD（选配，且与4千兆网口互斥） |
| 内部接口 Internal I/O | |
|
Expansion slot |
1x Full-Size Mini-PCIe Slot 1x M.2 2280 SSD Slot（SATA3.0/NVME） 1x M.2 2230 Slot For Wi-Fi 1x M.2 2280 SSD Slot（SATA3.0 且与SATA接口互斥） |
|
COM |
2x COM（RS232） |
| USB | 2x USB 2.0 |
| SATA |
1x SATA and SATA power |
| Speaker |
2x SPK 3.2W & 4Ω |
| LVDS |
1x LVDS slot |
| 触摸屏 Touch Panel | |
| Touch Screen |
全平面五线电阻屏 5-Wire Resistive Touch 全平面十点投射式电容屏 P-cap Multi-Touch |
|
Touch |
35,000,000 times |
| 显示屏 Display Screen | |
| Size |
17" |
| Resolution |
1280（H） x 1024（V） |
| Ratio | 4:3 |
| Brightness | 250 nits |
| Active Area | 337.92 x 270.336mm |
| LCD Dimension | 358.5(W)x 296.5(H)x 7.7(D)mm |
| Viewing Angle | CR>10, 89°/89°/89°/89° |
| Contrast Ratio | 1000:1 |
| Display Color |
16.7M |
| Pixel Pitch |
0.264（H） x 0.264（V） |
| Backlight |
LED Backlight |
| Backlight Lifetime |
30000Hrs |
| Power Consumption |
7.92W |
| 电源 Power | |
|
电源输入 Power Input |
12~24V DC |
| 环境 Environmental | |
|
操作温度 OperatingTemp. |
-10℃ ~ 50℃（SSD）, 0℃ ~ 40℃（HDD） |
|
Storage Temp. |
-40℃ ~ 60℃ |
|
Operating Relative Humidity |
50℃ 95%RH (SSD) |
|
Storage Elative Humidity |
60℃ 95%RH, 非凝结状态Non-condensing |
|
Random Vibration |
5~500Hz, 2Grms（SSD）operation，5~500Hz, 1Grms（HDD）operation, |
|
Sine Vibration |
5~500Hz, 2G Non-operation |
|
Shock |
Operation: 10G@11ms ； Non-operation: 20G@11ms |
|
Front Panel Protection |
IP65 |
| 机构 Mechanical | |
| Front | 铝，背部带有缓冲胶条 |

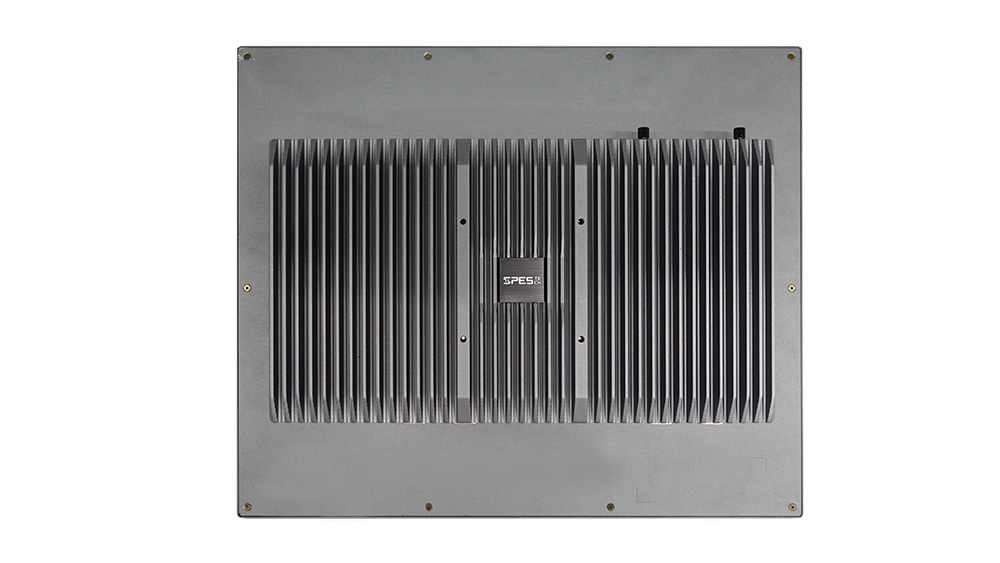

| Cooler | 铝 |
| Board | 铁 SECC |
| Mounting | Panel Mount and VESA-mount (75 x 75mm) |
| Dimension | 365 x 290 x 65mm |
| Suggestion Cut Size | 357 x 282mm |
| Weight | 4.8KG |
| 销售型号 Sales Model | |
| Sales Model | CIP-S17R-15UR CIP-S17R-35UR CIP-S17R-55UR |
